HAND-HELD COLOR DISP W PRINTER

    • Myers NoDHCBT2400HD
    • HAND-HELD COLOR DISP W PRINTER
    • Warranty12 Month
    • Please sign in to view current pricing.
      Click here to       Sign In
      Terms and conditions may apply

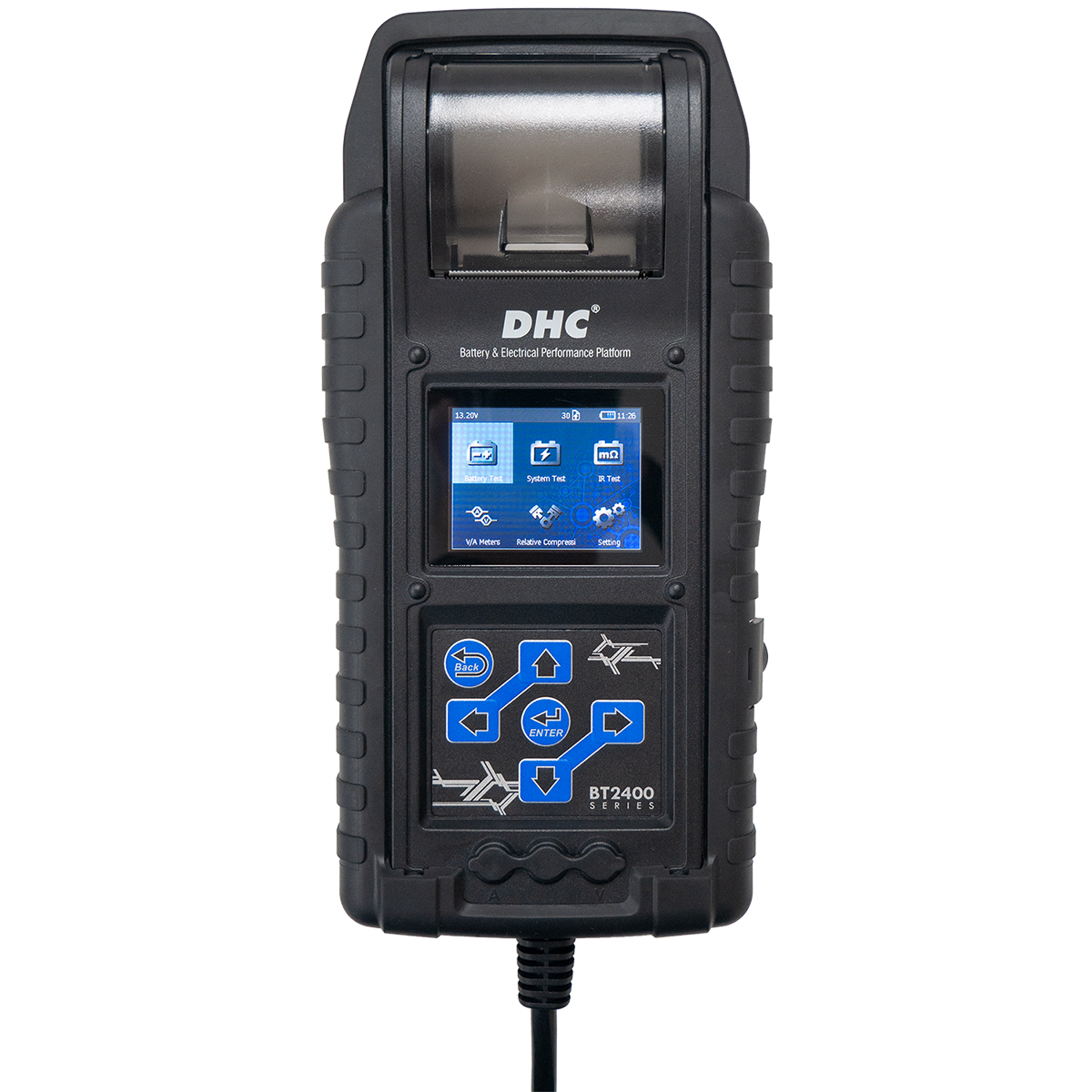

    The BT2400 HD is the ideal tester for trucks, lorries, and heavy vehicles. With 24V battery and battery pack support, it can test a wide range of battery configurations, which includes single 24V batteries, 12V parallel packs, and 12V serial (24V) packs. This battery testing ability is coupled with our time saving testing algorithms and procedure, so you can get battery condition report more quickly.

    Features
    6V, 12V, 12V Start-Stop and 24V Battery Test
    12V, 24V Battery Pack Tests (12V par. and 12V ser.)
    12V and 24V Cranking/Charging System Test
    6V/12V Internal Resistance Test
    TFT-LCD Display
    USB Type-A wired Connection
    Supports DHC Result Management Software
    Update Firmware PC
    Flexible Integrated Battery Type: AA or 18650 Li-Ion batteries
    Battery Temperature Detection and Compensation
    Built-in 2 in. Thermal Printer
    Detachable/Replaceable 14.7 ft. Cable

    Specifications
    Operating Range: 25 to 3,000 CCA (single battery), up to 6,000 CCA / SAE (12V par. pack)
    Application: 6V/12V/12V Start-Stop/24V Battery Test, 12V/24V Pack & System Test, 6V/12V Internal Resistance Test
    Voltage Range: 1V - 32V
    Battery Types: Flooded, AGM Flat/Spiral, EFB, VRLA, GEL, ODYSSEY
    Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA
    Operating Temp: 0-50°C (32-122°F)
    Temperature Sensor
    Connection: USB Type-A

    Additional Cross Reference Information
    BT2400HD

    Weight (Lbs.)
    7.50
