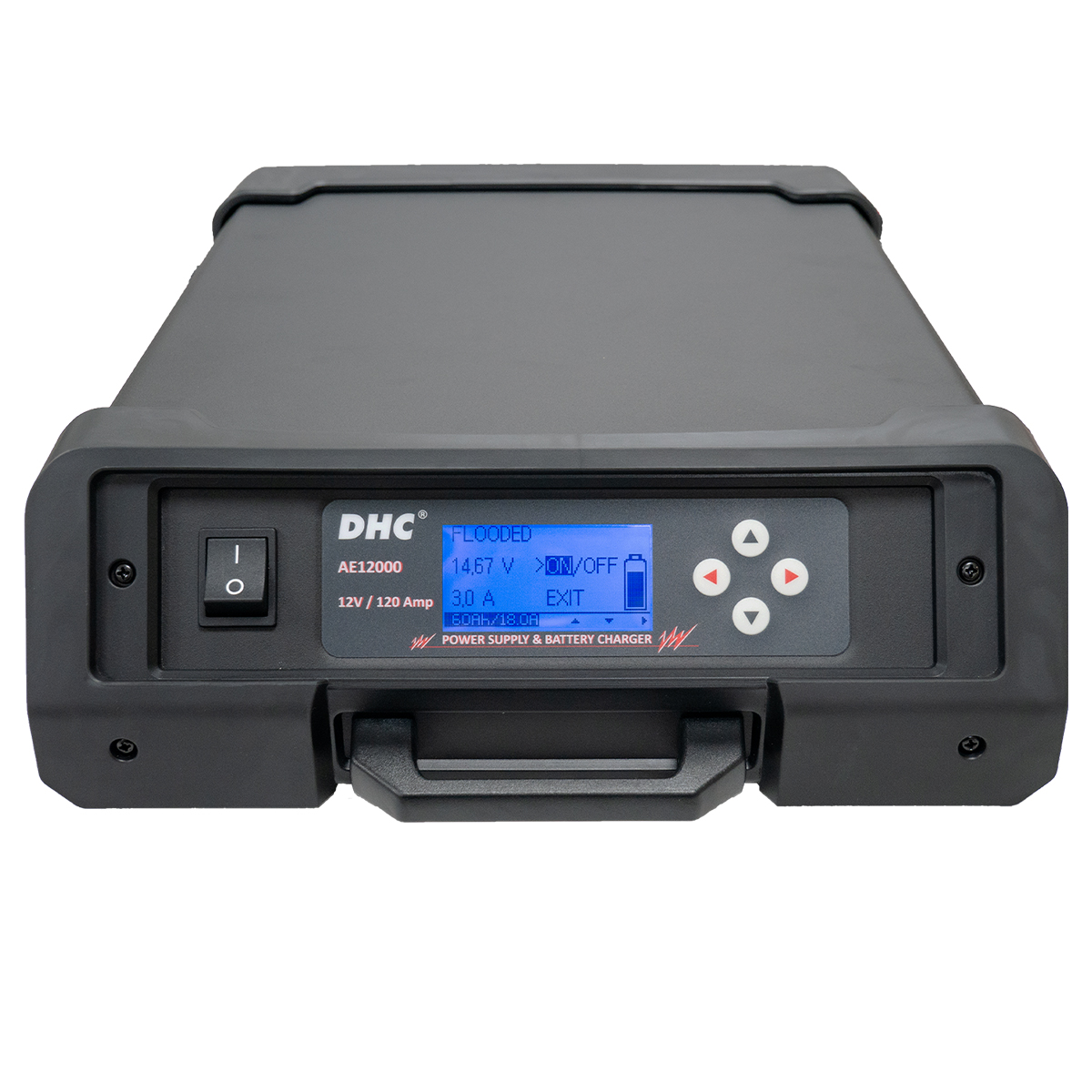

MULTI PURPOSE BATT CHGR

    • Myers NoDHCAE12000U
    • MULTI PURPOSE BATT CHGR
    • Warranty12 Month
    • Please sign in to view current pricing.
      Click here to       Sign In
      Terms and conditions may apply
    The 4-in-1 Solution
    The AE12000U has four operating modes:
    • Battery Charging Mode at 100 Amps
    • Power Supply Mode at 120 Amps
    • Showroom Mode at 50 Amps
    • Memory Saver Mode at 30 Amps


    The AE12000U is a multi-purpose battery charger and power supply. With the capability to provide 120A of sustained output, it is suitable for a diverse set of applications. It can be powered by either 110 - 120V (20A) or 220 - 240V AC input.

    Features
    120A Power Supply Mode for ECU and module programing
    Battery Charging Mode supplies up to 100A charging current
    Showroom Mode Supplies 50A of power silently
    Memory Saver Mode Retains ECU and module memories while changing battery
    4 Color Backlit Display
    USB Type-B Interface
    Ergonomic Fully-Insulated Heavy-Duty Clamps
    Reinforced Output Connector
    Includes wall mount bracket and UI rotating feature

    Specifications
    Battery Types: 12V Flooded, AGM Flat/Spiral, EFB, VRLA, GEL, Lithium (LFP)
    Charge Capacity: 20Ah - 1000Ah
    Max Sustained Output:
    Battery Charge: 100A
    Power Supply: 120A
    Showroom: 50A
    Memory Saver: 30A

    Protection:
    Reverse Polarity
    Short Clamp
    Over Voltage
    Over Current
    Over Temperature

    Clamp-Cable Length: 3m or 5m (9.8ft or 16.4ft)
    AC Cord: 3m (9.8ft)Operating Temperature: 0-40°C (32-104°F)

    Additional Cross Reference Information
    AE12000U

    Weight (Lbs.)
    23.40
