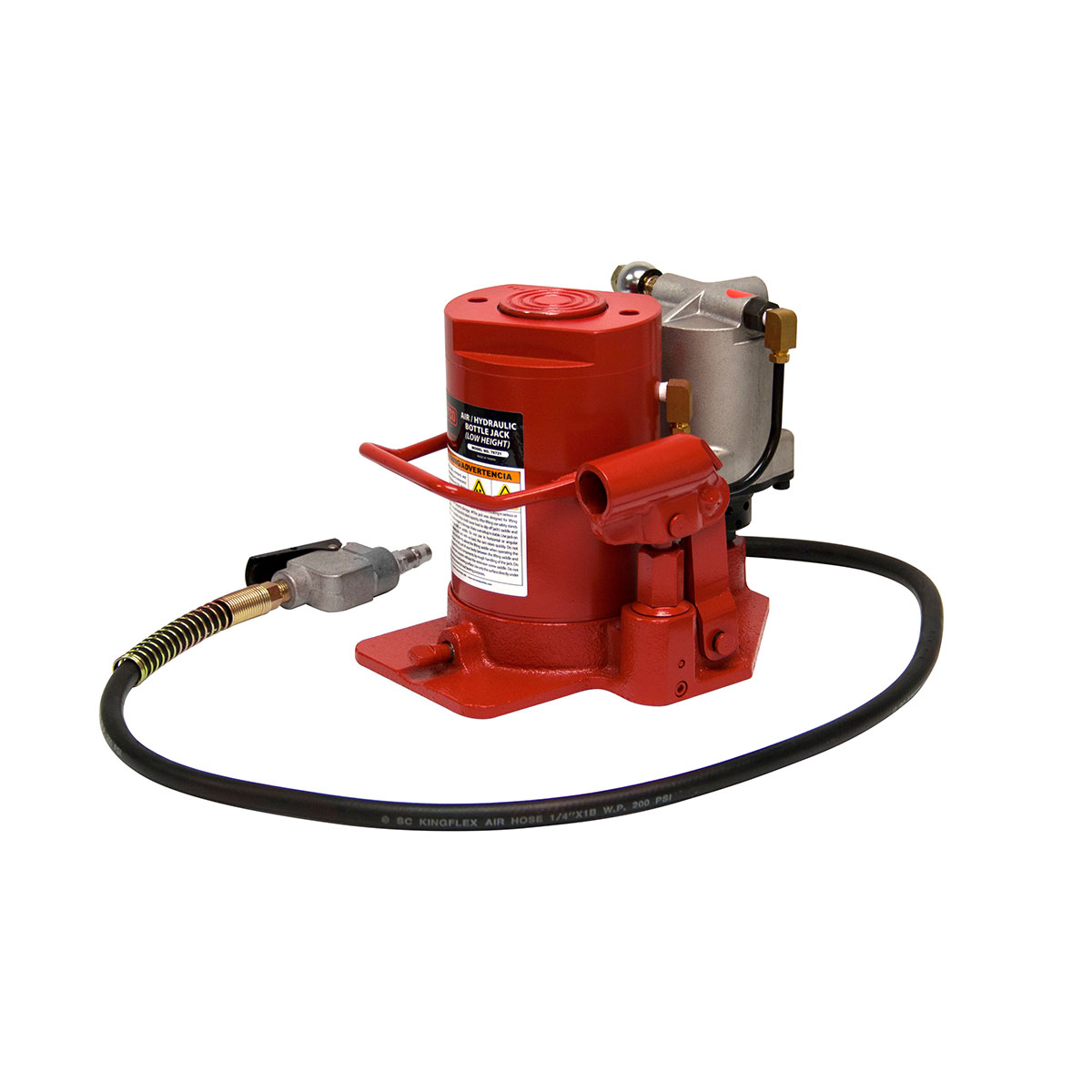

Norco 76721A 20 Ton Low Jack

    • Myers No89650
    • Norco 76721A 20 Ton Low Jack
    • Air/Hyd. w/o Ext. Screw
    • MFGNorco
    • WarrantyMfg. Limited Lifetime Warranty
    • Please sign in to view current pricing.
      Click here to       Sign In
      Terms and conditions may apply
    INTENDED USE: Made specifically for autobmobile haulers using trailers that are very low to the ground.
    • Made for all applications that require a low lift height
    • Fast air pump reduces lifting time, with a built-in relief mechanism that prevents the jack from being used beyond its maximum capacity
    • Push button air valve connected to an in-line filter prevents contaminates from entering the air/hydraulic system
    • Unique design allows for manual operation when air is not available
    • Two piece zinc plated handle
    • Coated to protect against rust
      • Parkerized coating on pump piston, extension screw, and extension adapters
      • Chrome coated ram
    • Longer wear life due to internally machined oil passages, smooth bearing surfaces, and close tolerances
    • Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard
    • Carrying handle


    Specifications
    DIMENSIONS:
    • Low Lift Height: 7.75 in.
    • High Lift Height: 11.75 in.
    • Stroke: 4 in.
    • Screw Extension: n/a
    • Base Size: 6.44 in. x 9 in.
    • P.S.I. Range: 100-130
    • Shipping Weight: 36 lbs.
    • Mfg. Item Number: 76721A


    Weight
    36.00
