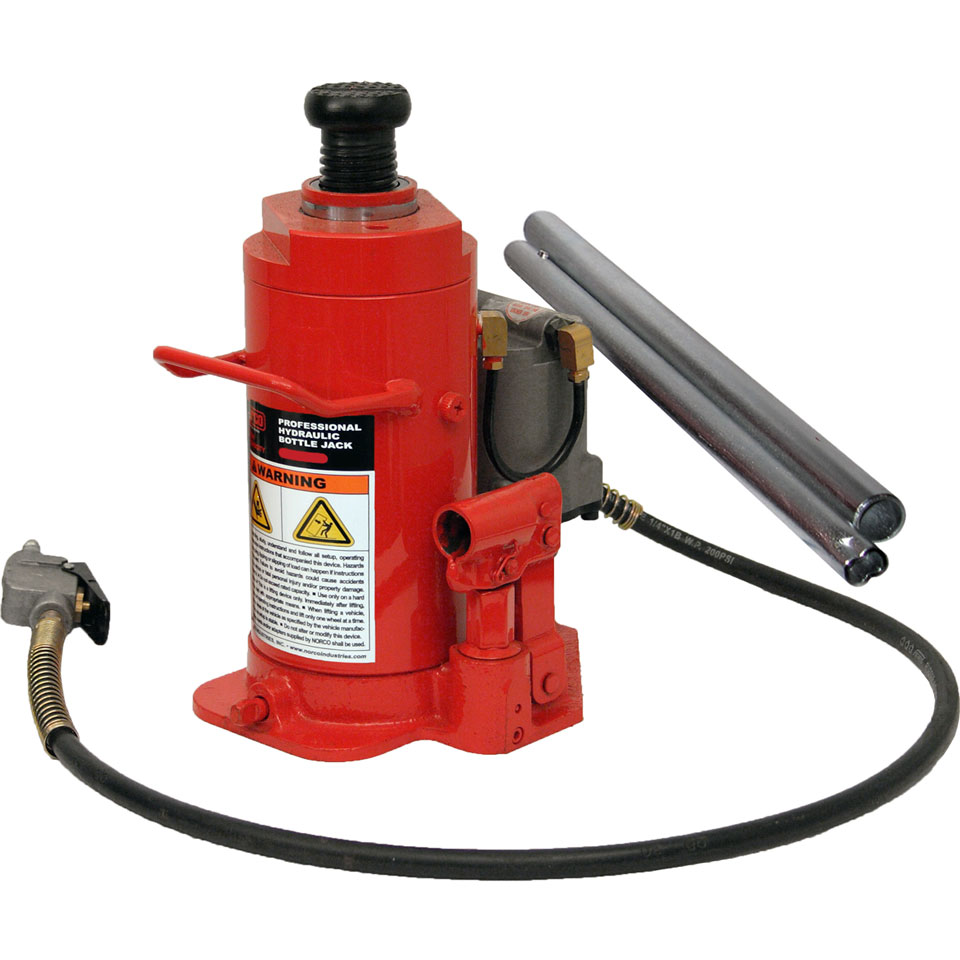

Norco 76312B 12 Ton Jack

    • Myers No89647
    • Norco 76312B 12 Ton Jack
    • Air/Hyd. Bottle Jack
    • MFGNorco
    • WarrantyMfg. Limited Lifetime Warranty
    • Please sign in to view current pricing.
      Click here to       Sign In
      Terms and conditions may apply
    INTENDED USE: For use in heavy duty trucks, farm equipment, building construction, construction and mining equipment, mobile home set-up, and oil field applications.
    • Fast air pump reduces lifting time, with a built-in relief mechanism that prevents the jack from being used beyond its maximum capacity
    • Push button air valve connected to an in-line filter prevents contaminates from entering the air/hydraulic system
    • Unique design allows for manual operation when air is not available
    • Two piece zinc plated handle
    • Coated to protect against rust
      • Parkerized coating on pump piston, extension screw, and extension adapters
      • Chrome coated ram
    • Longer wear life due to internally machined oil passages, smooth bearing surfaces, and close tolerances
    • Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard
    • Carrying handle


    Specifications
    DIMENSIONS:
    • Low Lift Height: 9.625 in.
    • High Lift Height: 19.75 in.
    • Stroke: 6 in.
    • Screw Extension: 4 in.
    • Base Size: 6.625 in. x 8 in.
    • P.S.I. Range: 100-130
    • Shipping Weight: 24 lbs.
    • Mfg. Item Number: 76312B
